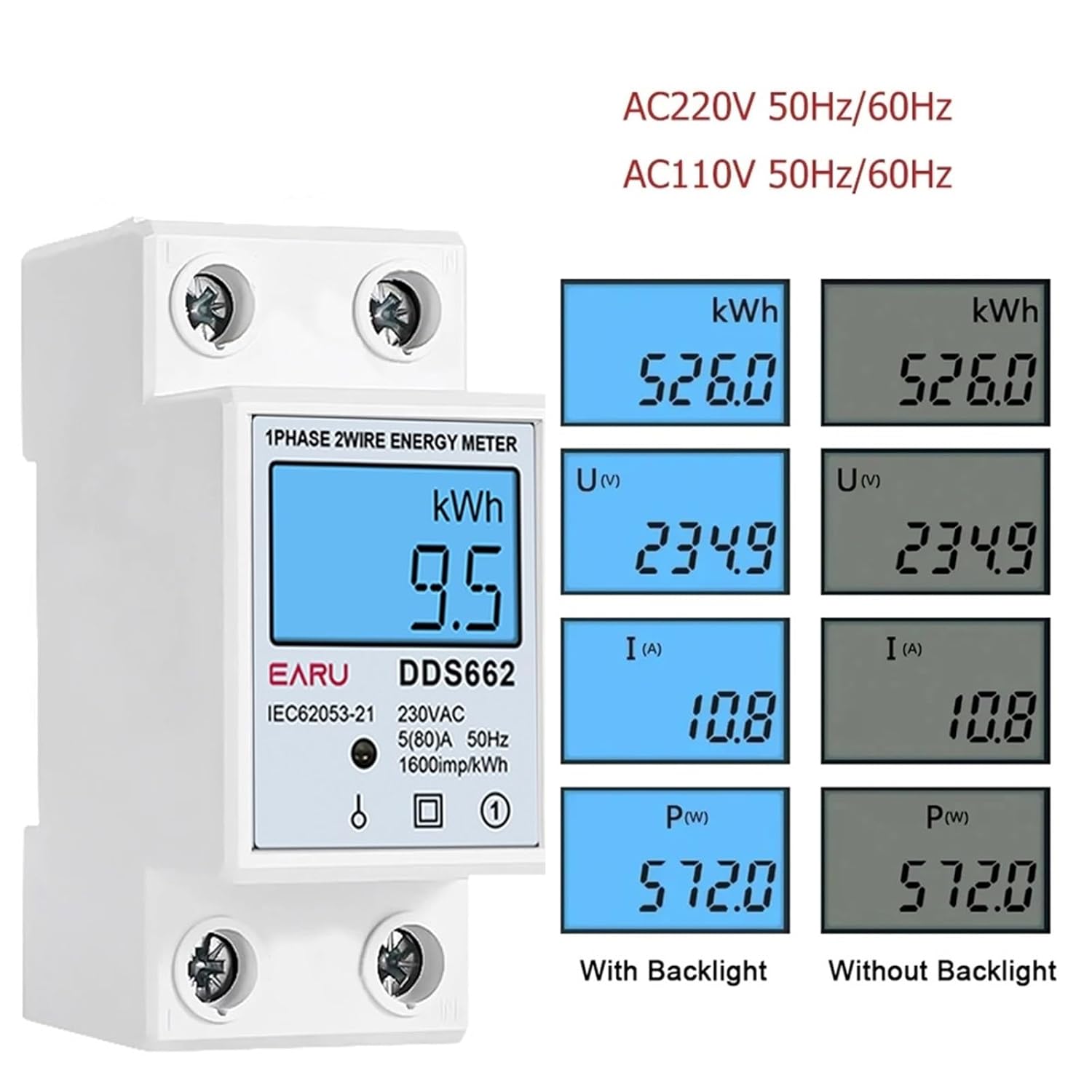

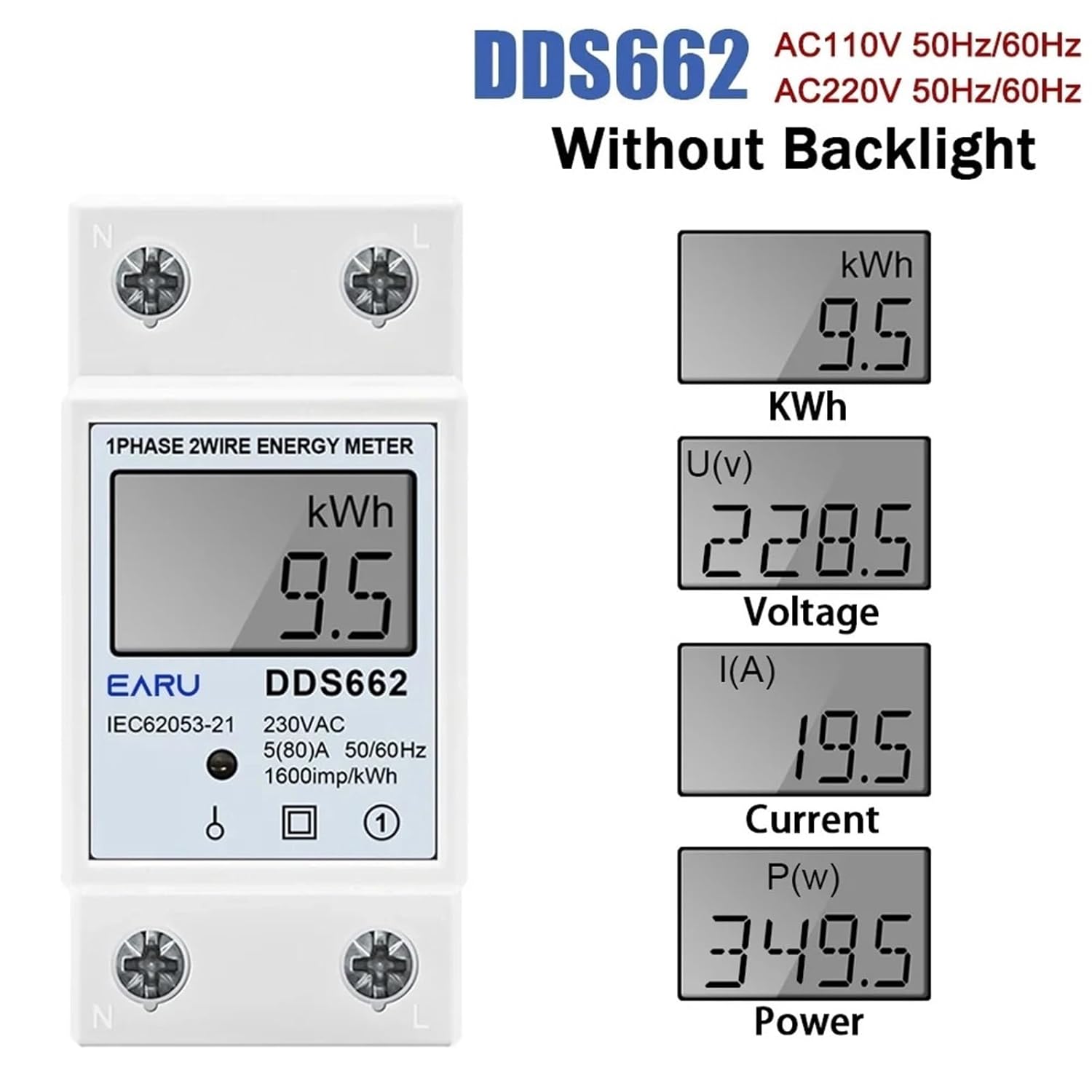

Din-Rail Power Energy Meter 5-80A LCD Backlight Digital Display Single Phase Electronic Energy KWh Meter Voltmeter Ammeter Volt(Without Backlight,110V)

AmmetersFeatures:1. 35mm DIN Rail mounting meets 2. 17.5mm pole width meets 3. LCD backlight digital display, no reset button, to avoid human manipulation with the data.4. It displays electricity, voltage, current, frequency and power.5. Red LED energy pulse signal.6. Embedded end cover, ensuring power supply safety.7. With the features of good reliability, small size, light weight, beautiful appearance and easy installation.8. Adopt microelectronics and digital processing technology to measure electric energy, accurate and reliable.9. Large scale integrated circuits and precision SMT technology, with good electromagnetic interference resistance and stable performance.Model: DDS662Reference Voltage: 220V/230V 50/60HzReference Current (. Current): 5(80)AInsulating Property: 1min 4KV Alternating Voltage, 1.2/50us 6KV Waveform Impulse VoltageDisplay: LCD Backlight Digital DisplayInstallation: 35mm DIN RailWiring Method: Up-out and down-in/up-in and down-outPower: 17000WEnvironment Temperature: -20°~+50°Pole Width: 17.5mm/0.7inFunctions: Display electricity, voltage, current, frequency, power factorsPackage Size: Approx. 8.6 * 4.2 * 7.2cm/3.4 * 1.7 * 2.8inWeight: Approx. 127.8gPackage list:1 * Energy Meter==========Dimensions : 78.5*65.8*36.3 mmOperating Temperature : -20~+55Output Voltage : 230V ACAccuracy Class : +-5%Measuring Energy Range : 99999.9Phase : single phaseModel Number : Energy MeterMax Operating Current : 50A - 79ARated Voltage : 220VPower Supply : ACDisplay Type : LCDEARUELETRIC Model : DDS662Reference Voltage : 220V/230V 50/60HzPower : 17000WPole Width : 17.5mm/0.7inPackage Size : Approx. 8.6 * 4.2 * 7.2cm/3.4 * 1.7 * 2.8inFunctions : Display electricity, voltage, current, frequency, power factorsGauges
